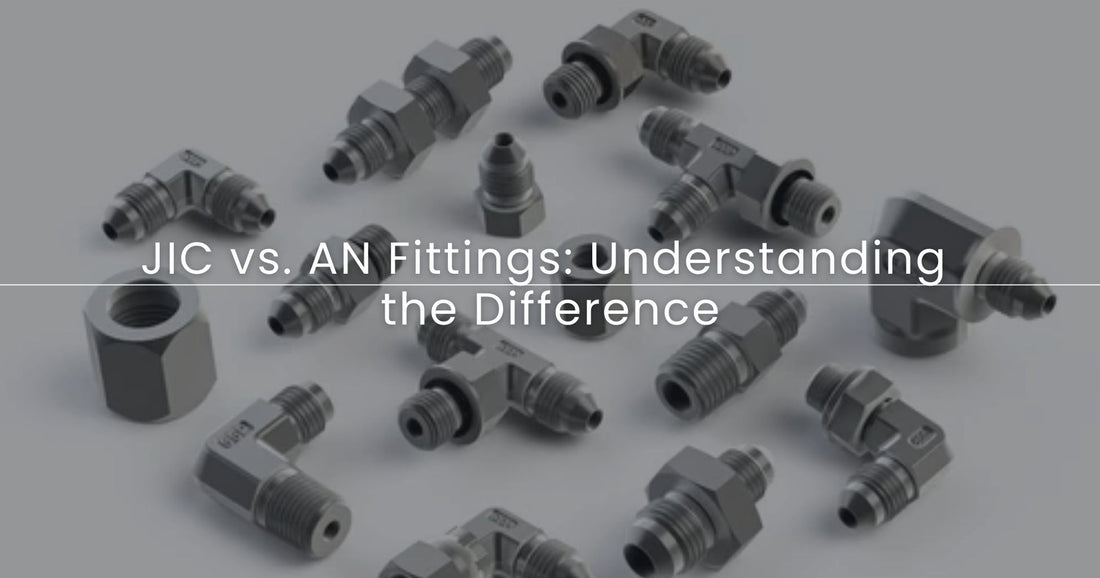

JIC vs. AN Fittings: Understanding the Difference

JIC vs. AN Fittings: Understanding the Difference

Dealing with the most appropriate fitting is as important as remembering your mother's birthday when dealing with fluid transfer systems, whether in a car, an airplane, or heavy-duty machinery. In JIC and AN fittings, two types often need clarification.

They look similar, but I can assure you they are not even related. This will explain the differences between JIC vs AN so simply that you will never confuse them again! You will know which fitting to pick up and when, so you won't have to deal with unnecessary headaches or last-minute DIY catastrophes. Who needs extra stress when you're already elbow-deep in grease?

JIC Fittings

JIC Fittings

JIC fittings are the backbone of engineering, thanks to the standards set by the Society of Automotive Engineers or SAE. These JIC fittings, JIC hose fittings, and JIC pipe fittings are used in automotive, aerospace, and industrial fluid power systems.

Why do they stand out? This company has a unique 37-degree flare seating face that gives it an advantage over its competitors by creating a strong metal-to-metal seal. This type of design is especially important when dealing with high-pressure applications because it prevents any potential leakage.

  • Material: In most cases, JIC fittings are made of steel, stainless steel, or brass; these materials have long life spans.
  • Application: These components are usually found in hydraulic, fuel delivery systems, and other high-pressure applications.
  • Size Range: Their sizes vary widely, making them suitable for different situations.

Including the 37-degree flare was not random, but this degree is a perfect compromise between seal strength and ease of installation. JIC and pipe fittings are known for being tough and reliable; hence, they can be relied on in extremely hazardous environments where safety cannot be compromised at all costs.

AN Fittings

AN Fittings

AN fittings have a fascinating history, tracing military specifications created during World War II for aircraft. The "AN" stands for Army-Navy, reflecting their origin in military aviation. Designed for the rigors of combat, these fittings needed to be reliable and precise.

Interestingly, AN flare fittings share the same 37-degree flare seating surface as JIC fittings, so they often get mixed up. But don’t be fooled—they serve different purposes.

  • Material: AN fittings are usually made from lightweight aluminum, although you can also find them in steel or stainless steel for added durability.
  • Application: These fittings are a favorite in aerospace, motorsports, and high-performance automotive setups, where every ounce and millimeter counts.
  • Size Range: AN fittings use a unique sizing system marked by a dash number, indicating the tube’s outer diameter in sixteenths of an inch.

So, what is an AN fitting, and why are they so valued? AN fittings are prized in high-performance circles not just for their strength but for how little they weigh. This makes them perfect for racing or aerospace, where reducing weight is as crucial as ensuring a secure connection. In these environments, the combination of lightweight material and precise engineering is what makes AN fittings stand out.

Key Differences Between JIC and AN Fittings

Key Differences Between JIC and AN Fittings

While JIC and AN fittings share some similarities, several key differences set them apart:

Standards and Specifications

JIC fittings adhere to the SAE J514 and ISO 8434-2 standards, while AN fittings follow military specifications, primarily MIL-F-5509. These standards ensure that the fittings meet specific requirements for safety and performance in their respective applications.

The differences in standards reflect the unique demands of industrial versus military applications, emphasizing the specialized nature of each fitting type.

Material

These are often made of stainless steel JIC fittings, making them sturdy enough to be used in industrial environments. The strength and durability required to withstand the sometimes harsh conditions that prevail within industrial set-ups are provided by steel. On the other hand, AN fittings are normally manufactured from aluminum materials, which make them lighter and hence suitable for use where performance is key. This only serves to decrease the weight while at the same time making it more resistant to corrosion, due to which it can be said to be ideal for high-performance applications

Applications

JIC fittings serve a multipurpose role across industries, including industrial hydraulics and automotive systems. Due to their versatility, they can work in various systems, making them a favorite choice among many people. Conversely, AN fittings are tailored towards aerospace and high-performance automotive applications where both weight and precision are important. Since these require exactness, AN fittings are usually subjected to strict quality measures as well as testing

Interchangeability

Even though the materials specification of JIC and AN fittings is unique, making them not officially interchangeable, they can be used interchangeably in low-pressure situations. Conversely, this practice carries risks especially if employed on high-pressure or safety-critical systems. Therefore, one must consider the application before utilizing a fitting type instead of another. Nevertheless, this is not advisable for high-pressure or critical systems.

Cost

JIC fittings are generally less expensive due to the materials used and their widespread availability. The lower cost makes JIC fittings a more economical choice for large-scale industrial projects where budget considerations are important. In contrast, AN fittings are typically more expensive because of their specialized applications and material quality, reflecting the higher standards required for their intended uses.

Ease of Installation

Additionally, JIC fittings are easier to install because of their standardized threads, making them ideal for applications that require frequent assembly and disassembly. The ease of installation also means less time and effort are needed during maintenance or system modifications. Conversely, AN fittings require more precise installation practices to ensure proper sealing and performance, particularly in high-pressure environments. This precision is crucial in applications where any failure could lead to serious consequences.

When to Use JIC vs. AN Fittings

When to Use JIC vs. AN Fittings

JIC fittings are probably a better choice when working in an industrial environment where durability and pressure resistance are important; however, AN fittings might be more suitable for aerospace, military aviation applications, or motorsports that require weight, precision, and compliance with fitting standards.

For those who work on custom builds like performance cars, it is necessary to consider the system requirements. Although ANs, also known as Army Navy fittings, may come with weight and aesthetic advantages, JICs, endorsed by the Joint Industry Council, may give you what you need for long-term reliability, especially in the industrial market and commercial aviation sectors. These fittings are functionally interchangeable with SAE fittings, ensuring compatibility across different systems. Military contractors might also prefer JICs for their superior fatigue life, making them dependable in demanding applications. Additionally, when selecting the right fitting for your project, considering a JIC swivel hose fitting can be crucial for achieving optimal performance and reliability.

Final Thoughts

Although these fittings may appear similar, their separate standards, materials, and applications make each type suitable for different tasks. By carefully considering your project's requirements, you will get the correct fitting that will perform best and maintain reliability at high levels.

The choice between JIC and AN fittings, including flare fittings that conform to tighter tolerances, such as 37 flare fittings, could have a huge impact on the outcome of your project. Whether you are an engineer working on a hydraulic system with hydraulic fittings or a motorsport enthusiast fine-tuning his vehicle and JIC fittings, the importance of understanding the specific needs of your application cannot be overstated. The Air Force Navy Aeronautical industries often rely on these threaded fittings for their critical systems. Make sure that you choose the fitting that provides the best solution.

Key Takeaways

  • Material and Durability Matter: When selecting between JIC and AN fittings, consider the material composition—steel for JIC offers durability for industrial use. In contrast, lightweight aluminum in AN fittings is better suited for high-performance applications.
  • Application-Specific Fittings: The choice between JIC and AN fittings depends heavily on the application. JIC is versatile across industries like hydraulics and automotive, whereas AN is specialized in aerospace and motorsports.
  • Cost vs. Performance: Balancing cost with performance is needed. JIC fitting is generally more cost-effective and widely available, making it ideal for large-scale projects. In contrast, AN fittings, though more expensive, are designed to meet the stringent demands of specialized fields.
